Giant REVOLT X ADVANCED PRO 1 – Carbon Gravel Bike – 2023 – Cordovan/copper Coin





Suspended Gravel Bike for a more comfortable riding experience.

Bumpy descents, sketchy gravel, Gravel and rocks of all shapes and sizes. You never know what to expect on a gravel ride. This new carbon Gravel machine features a suspension fork and sophisticated compliance so you can ride through it all with speed and control.

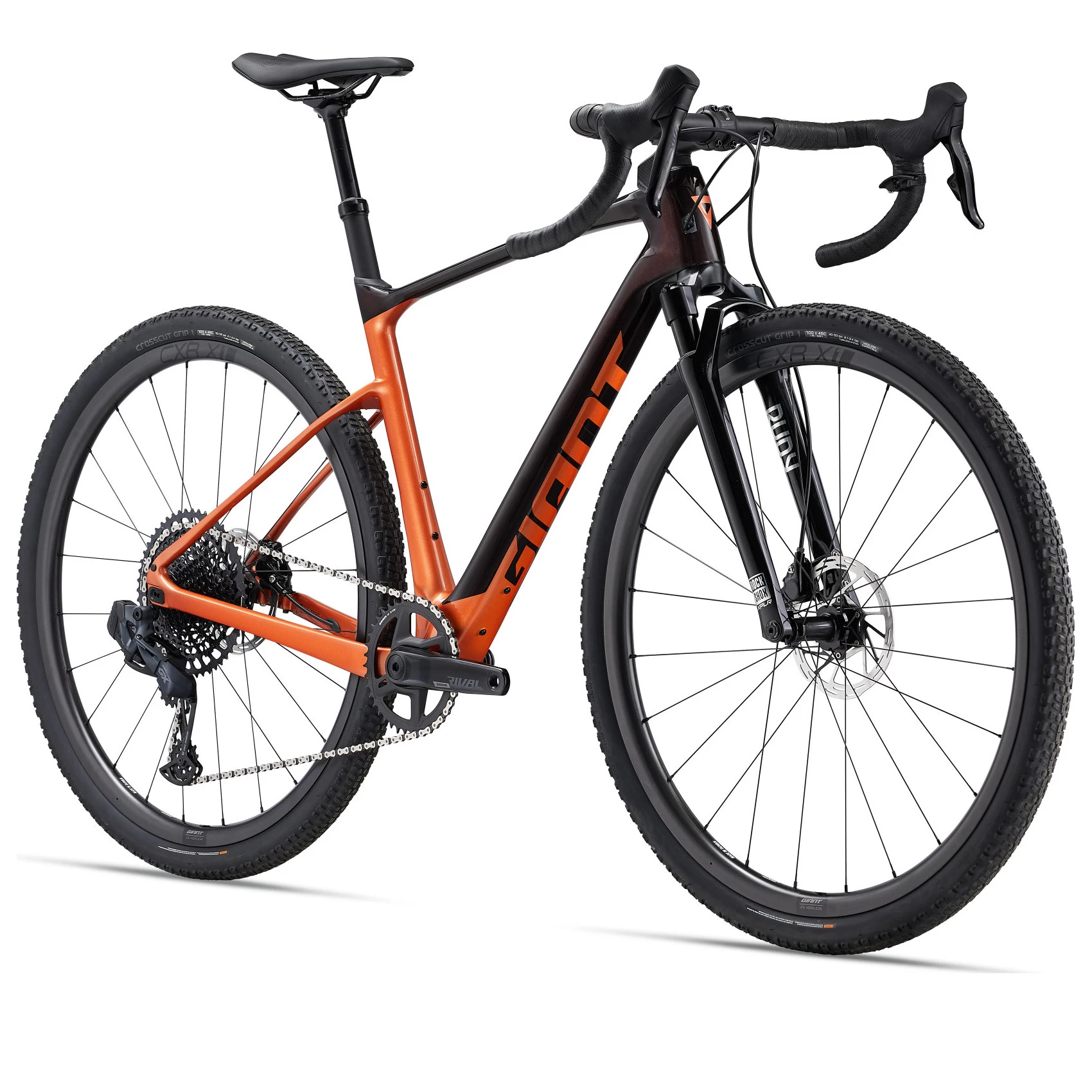

• The carbon frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and shocks so you can ride smoother and faster over rough gravel and dirt.

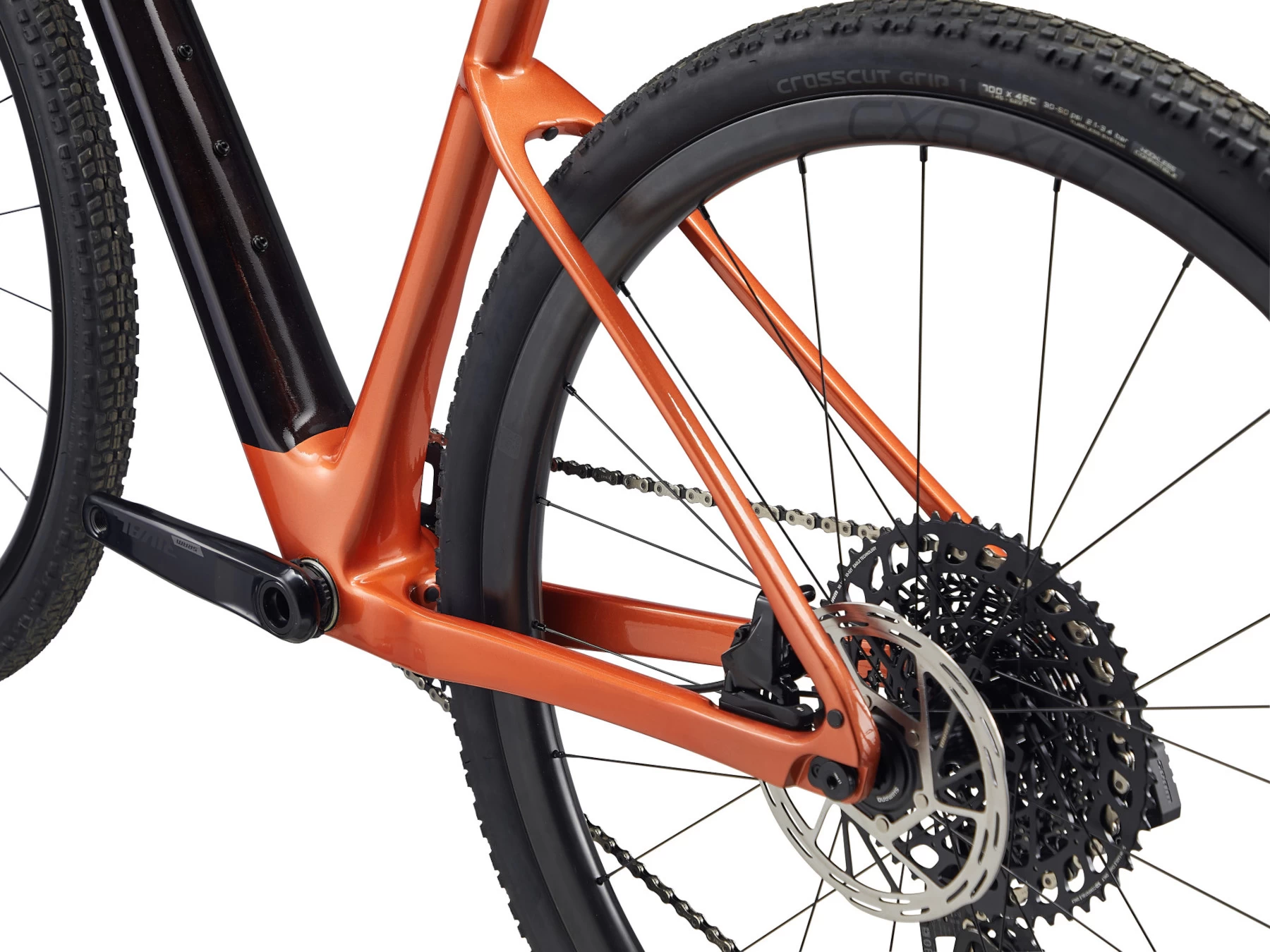

• Lowered seatstays with smaller diameter tubes absorb shock and vibration from the road. The Contact SL XR D-Fuse handlebar adds compliance without losing the stiffness you need for cornering, sprinting or climbing.

• With a Flip-Chip on the rear dropout, you can adjust the wheelbase: short for faster handling or long for more stability at high speed. The long setting also allows you to use tires up to 53mm in diameter.

Highlights of the Giant REVOLT X ADVANCED PRO 1 – Carbon Gravel Bike – 2023

• Lightning-fast gear changes with electronic SRAM Rival eTap AXS shifting.
• Compact Road Frame Shape – A downward sloping top tube creates smaller front and rear triangles for a lighter, stiffer bike with a better fit.
• D-shaped handlebars dampen vibrations for a smooth and comfortable ride.

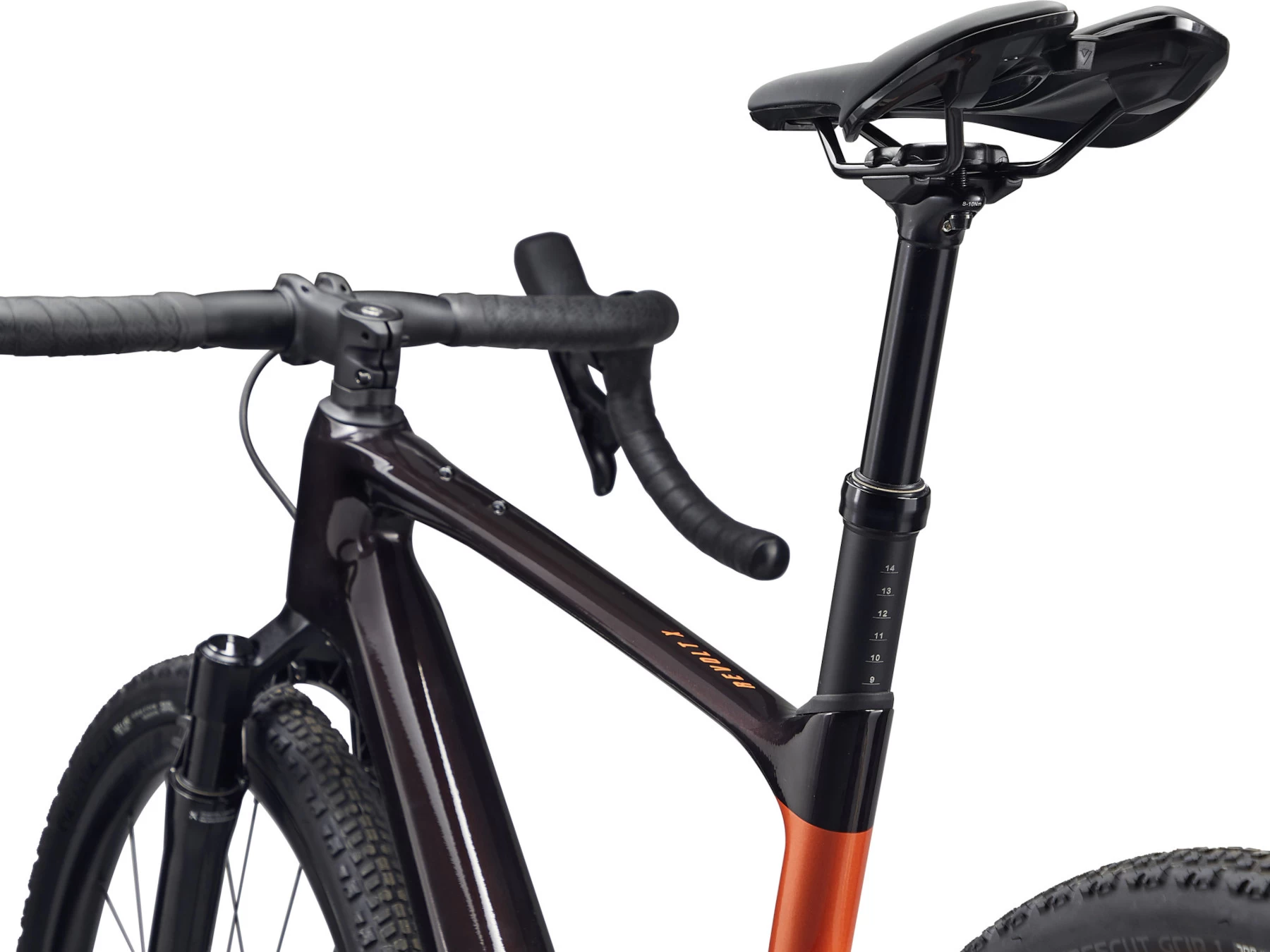

• Thanks Dropper-Post you adapt your bike to any riding style.
• Tubeless wheel system and tires offer improved efficiency, comfort and control in a user-friendly and reliable system.
• Hydraulic disc brakes deliver reliable stopping power in all weather and road conditions.
• Advanced Carbon Frame – The front frame triangle is assembled and formed in a patented manufacturing process, from a single piece.
• 40mm of front suspension travel expands the capabilities of this bike, improving control and reducing fatigue when riding on rough roads, gravel and dirt.

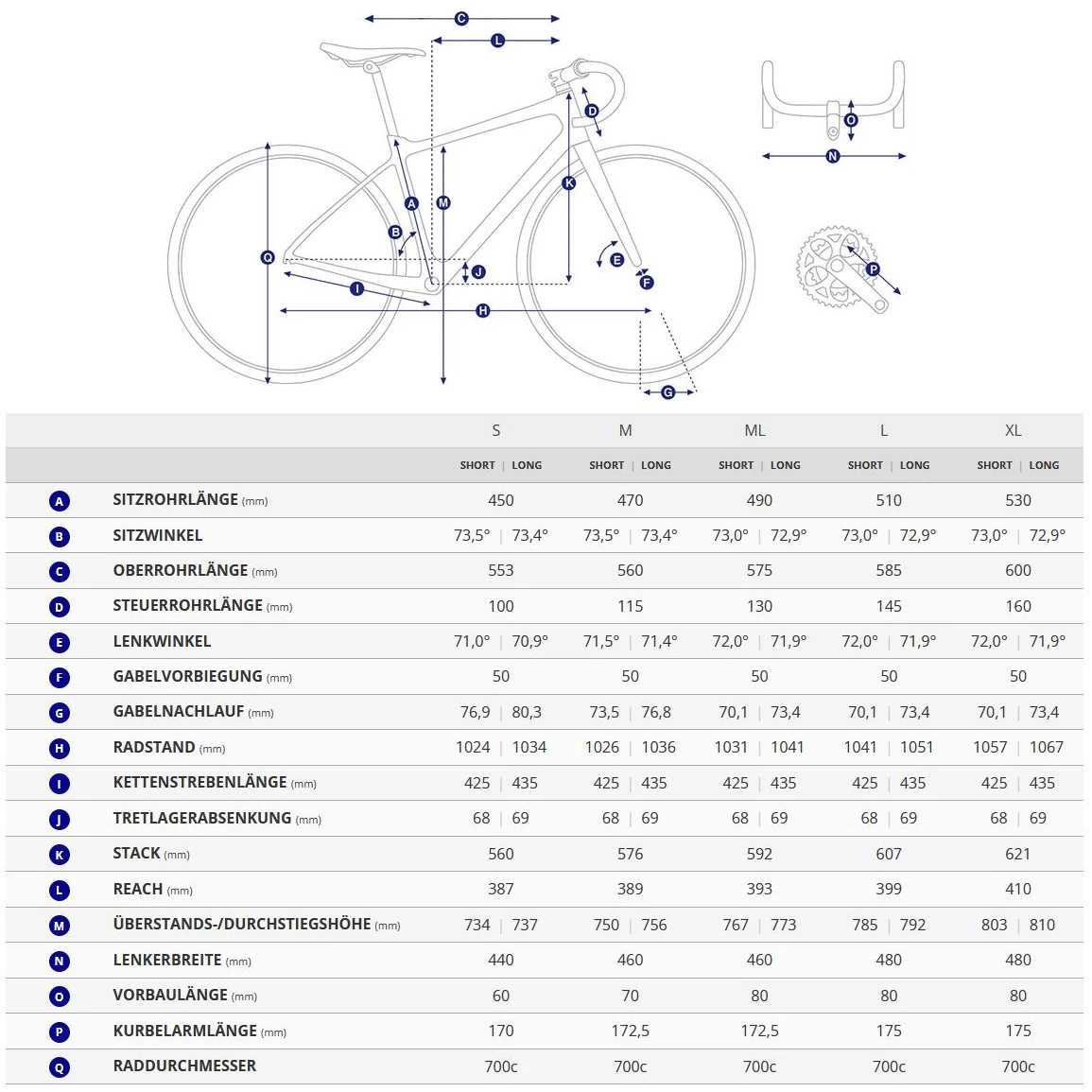

• Geometry, wheelbase and rear tire clearance can be adjusted using a two-position flip chip on the rear dropouts.

Giant Technologies

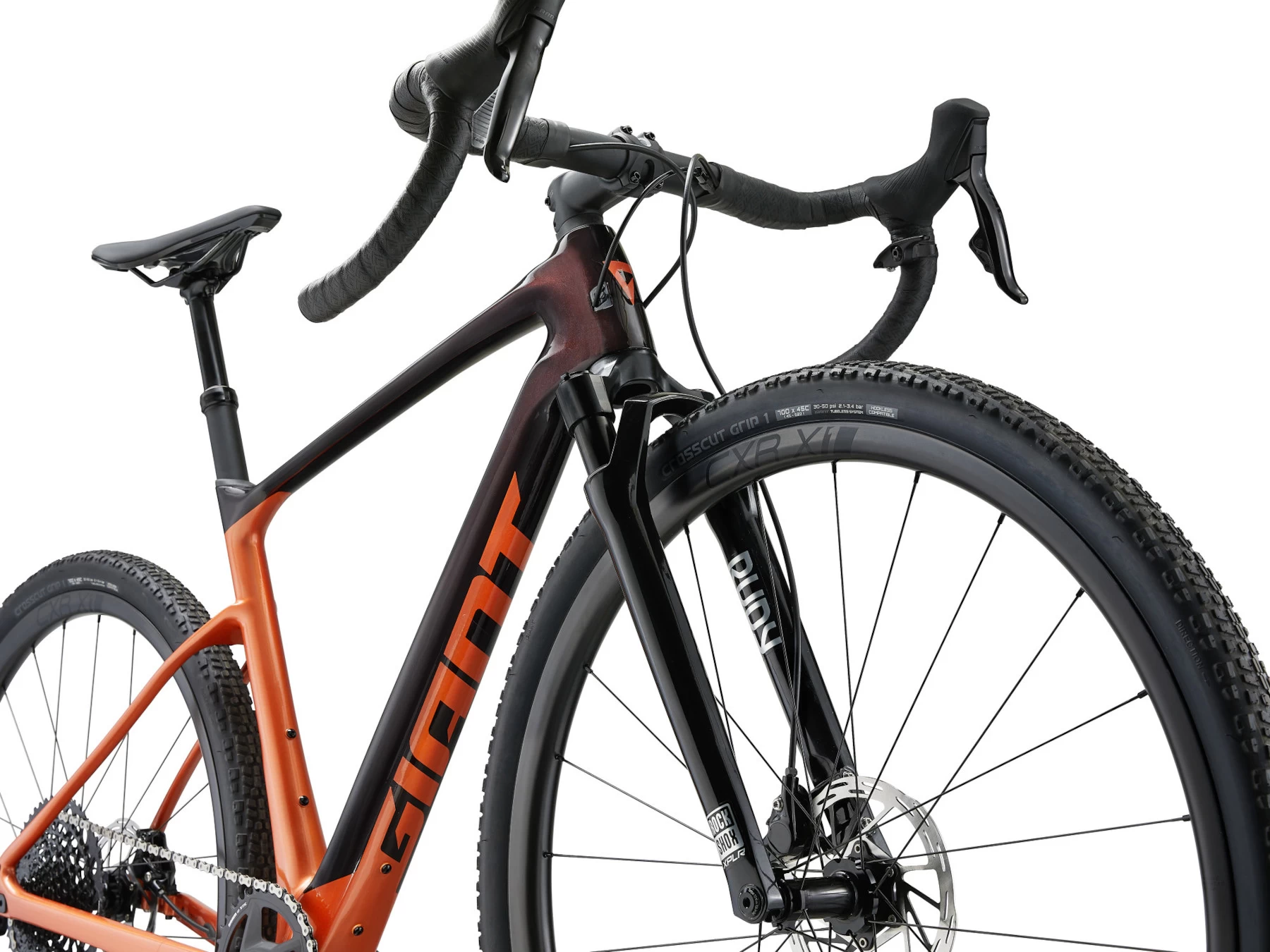

– OverDrive technology is designed to improve front wheel stiffness and steering for precise handling, Oversized head tube technology features oversized headset bearings (1 1/4″ bottom and 1 1/8″ top) and a tapered steerer tube for optimal steering stiffness.

– A voluminous down tube and oversized top tube provide superior lateral and torsional steering precision. The precisely engineered, square-shaped down tube provides unparalleled steering and pedaling stiffness.

– The entire bottom bracket and chainstay area comes in a voluminous oversized design and provides space for a fully integrated, 86 mm wide bottom bracket. Symmetrical chainstays provide additional stiffness on the drive side and more stability on the non-drive side.
